Produktdetails:
|
| Teilnummer: | CR5DL4XEBG7L | Bedingung: | Neu mit 1-jähriger Ersatzgarantie |
|---|---|---|---|
| Versand: | DHL, UPS, TNT, | Website: | www.lonriseeqt.com |
| Attribute: | Hardware | Kategorie: | Linecard |
| Vorproduktfamilie: | NE40E-X8A | ||
| Markieren: | 4x10GBase Network Interface Card,CR5DL4XEBG7L,USR Ethernet Network Interface Card |
||

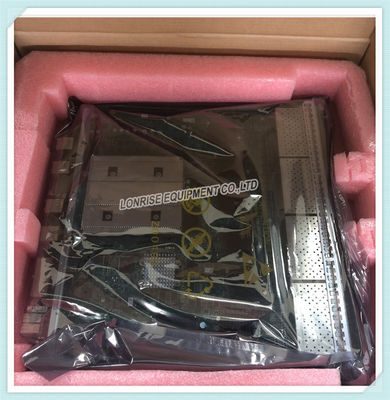

03055716 Huawei 4-Port 10GBase LAN/WAN-SFP+ + 12-Port 100/1000Base-X-SFP Integrated Line Processing Unit L(LPUI-51-L)
| Product Part Number | 03055716 |
| Model | CR5DL4XEBG7L |
| Description | 4-Port 10GBase LAN/WAN-SFP+ + 12-Port 100/1000Base-X-SFP Integrated Line Processing Unit L(LPUI-51-L) |
| Software and Hardware Attributes | Hardware |
| EAN | |
| UOM | PCS |
| Pack Weight(kg) | |
| Pack Volume(m^3) | |
| Pack Dimension(D*W*H mm) | |
| Net Dimension(D*W*H mm) | 551*398*41 |
| Typic Power(W) | 160 |
The NE40E series Universal Service Router (USR) is a high-end network product that features line-rate forwarding capability, a well-designed Quality of Service (QoS) mechanism, strong service-processing capability, and excellent expansibility. It can be deployed at the edges of Internet Protocol (IP) backbone networks, IP Metropolitan Area Networks (MANs), Internet Data Center (IDC) networks and other large-scale IP networks. The NE40E can provide comprehensive services for enterprises and residential areas as a universal edge device.Huawei NE40E Universal Service Router
Based on distributed hardware forwarding and non-blocking switching technologies, the NE40E provides maximum 480G line cards to satisfy the increased demand for bandwidth.
The NE40E series includes the NE40E-X16A/X16, NE40E-X8A/X8, and NE40E-X3/X3A models to satisfy requirements for networks at various scales.
NE40E-X16A Basic Configuration
NE40E-X16A Integrated DC Chassis Components (2T, including 6 fan trays)
NE40E-X16A Integrated AC Chassis Components (2T, including 6 fan trays)
NE40E-X16A Integrated DC Chassis Components (including 4 fan trays)
NE40E-X16A Integrated AC Chassis Components (including 4 fan trays)
Main Processing Unit B5 (16G Memory)
480 Gbit/s Switch Fabric Unit B (SFUI-480-B)
1 Tbit/s Switch Fabric Unit B (SFUI-1T-B)
NE40E-X8A Basic Configuration
NE40E-X8A Integrated Chassis DC Components (including 2 fan trays)
NE40E-X8A Integrated Chassis AC Components (including 2 fan trays)
Switch and Route Processing Unit A8 (16G Memory)
480 Gbit/s Switch Fabric Unit C (SFUI-480-C)
Switch and Route Processing Unit A9 (16G Memory)
1 Tbit/s Switch Fabric Unit C (SFUI-1T-C)
NE40E-X3A Basic Configuration
NE40E-X3A Integrated DC Chassis Components (including dual DC power)
NE40E-X3A Integrated AC Chassis Components (including dual AC power)
Main Processing Unit D4 (16G Memory)
NE40E-X16 Basic Configuration
NE40E-X16 Integrated Chassis Components (including 8 DC power)
Main Processing Unit B5 (16G Memory)
200 Gbit/s Switch Fabric Unit B (SFUI-200-B)
NE40E-X8 Basic Configuration
NE40E-X8 Integrated Chassis Components (including 4 DC power)
Switch and Route Processing Unit B5
200 Gbit/s Switch Fabric Unit C (SFUI-200-C)
Switch and Route Processing Unit A7
100 Gbit/s Switch Fabric Unit D (SFUI-100-D)
NE40E-X3 Basic Configuration
Integrated DC Chassis Components (NE40E-X3)-4U, Including Dual DC Power
Integrated AC Chassis Components (NE40E-X3)-5U, Including Dual AC Power
Main Processing Unit D3
Main Processing Unit D2
