Produktdetails:
|
| Model: | C9200L-24P-4X-E | Form Factor: | Rack-mountable, 1U |
|---|---|---|---|
| Dimensions (Chassis + FEP + Fan, H × W × D): | 1.73 × 17.5 × 12.9 in (4.4 × 44.5 × 32.9 cm) | Operating Temperature: | -5°C to +45°C (up to 10,000 ft / 3000 m) |
| Relative Humidity (Operating): | 5% to 90% (non-condensing) | Acoustic Noise (LpA Typical/Max): | 42 dB / 45 dB |
| Fixed Ports: | 24 × 10/100/1000BASE-T PoE+ | Management Ports: | 1 × RJ-45 Console, 1 × RJ-45 Management |
| Safety Standards: | UL 60950-1, IEC 62368-1, EN 60950-1 | Warranty: | 1year |
| Condition: | Brand New | ||
| Hervorheben: | Cisco Catalyst 9200L 24-port PoE+ switch,C9200L-24P-4X-E network switch with 10G uplink,Cisco Ethernet switch with Network Essentials |
||

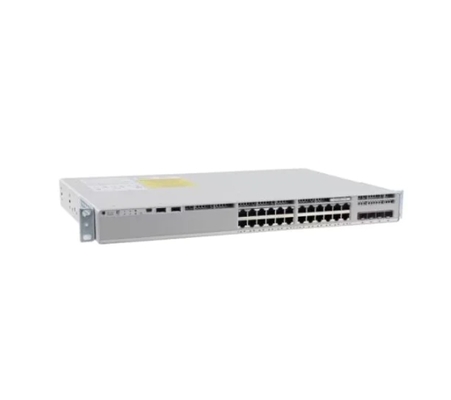

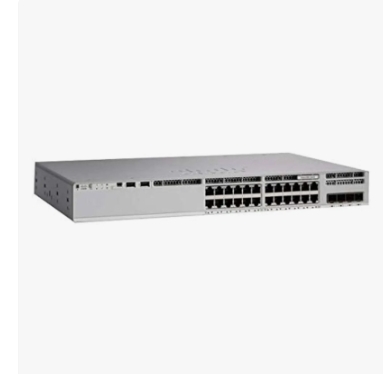

C9200L-24P-4X-E Übersicht
C9200L-24P-4X-E ist der Catalyst 9200L24 Ports Full PoE+4x10G Uplink-Switch, mit Network Essentials Software. Cisco Catalyst 9200 Series Switches erweitern die Leistungsfähigkeit des intent-basierten Netzwerkbetriebs und der Hardware- und Softwareinnovationen der Catalyst 9000 Serie auf eine breitere Palette von Bereitstellungen. ![]()
![]()
|
Modell |
C9200L-24P-4X-E |
|
Downlinks insgesamt 10/100/1000 oder PoE+ Kupferports |
24 Ports Full PoE+ |
|
Uplink-Konfiguration |
4x 10G feste Uplinks |
|
Standard-Primär-AC-Netzteil |
PWR-C5-600WAC |
|
Lüfter |
Fest redundant |
|
Software |
Network Advantage |
|
Stacking-Bandbreite |
80 Gbit/s |
|
DRAM |
2 GB |
|
Flash |
4 GB |
|
Switching-Kapazität |
128 Gbit/s |
|
Weiterleitungsrate |
190,4 Mpps |
|
Gehäuseabmessungen |
1,73 x 17,5 x 11,3 Zoll 4,4 x 44,5 x 28,8 cm |
![]()
