ISR4221-SEC/K9 ISR 4321 with 2 onboard GE, 2 NIM slots, 1 ISC slot, 4 GB Flash Memory default, 4 GB DRAM default

Großes Bild : ISR4221-SEC/K9 ISR 4321 with 2 onboard GE, 2 NIM slots, 1 ISC slot, 4 GB Flash Memory default, 4 GB DRAM default

Produktdetails:

Herkunftsort:	CHINA
Markenname:	CISCO
Zertifizierung:	CE
Modellnummer:	ISR4221-SEC/K9

Zahlung und Versand AGB:

Lieferzeit:	2-3 Tage
Zahlungsbedingungen:	T/t

Kontakt

ISR4221-SEC/K9 ISR 4321 with 2 onboard GE, 2 NIM slots, 1 ISC slot, 4 GB Flash Memory default, 4 GB DRAM default

Beschreibung

Produktname:	Router	Teilenummer:	ISR4221-SEC/K9
Zahlung:	Tt	Lieferung:	DHL
Zustand:	Neu	Vorlaufzeit:	2-3 Tage
Garantie:	1 Jahr	Schlüsselwörter:	ISR 4351

ISR4221-SEC/K9 Specification

Model

ISR4221-SEC/K9

Brand

Cisco

Bundle

Cisco ISR 4221 SEC Bundle with SEC lic

Aggregate Throughput

35 Mbps to 75 Mbps

Total Onboard WAN or LAN 10/100/1000 Ports

RJ-45-based Ports

SFP-based Ports

Enhanced Service-Module Slots

Doublewide Service-Module Slots

NIM Slots

OIR (All I/O Modules)

Onboard ISC Slot

Default Memory DDR3 ECC DRAM (Combined Control/Services/Data Planes)

4 GB

Maximum Memory DDR3 ECC DRAM (Combined Control/Services/Data Planes)

4 GB

Default Flash Memory

8 GB

Maximum Flash Memory

8 GB

External USB 2.0 Slots (Type A)

USB Console Port Type B Mini (Up to 115.2 kbps)

Serial Console Port - RJ45 (Up to 115.2 kbps)

1 (combo CON/AUX port)

Serial Auxiliary Port - RJ45 (Up to 115.2 kbps)

1 (combo CON/AUX port)

Power-Supply Options

External: AC Only

Redundant Power Supply

N/A

AC Input Voltage

100 to 240 VAC autoranging

AC Input Frequency

47 to 63 Hz

AC Input Current Range, AC Power Supply (Maximum)

1.5 to 0.6A

AC Input Surge Current

90 A peak and less than 3 Arms per half cycle

Typical Power (No Modules) (Watts)

Maximum Power with AC Power Supply (Watts)

Maximum Power with PoE Power Supply (Platform Only) (Watts)

NA (No PoE Support)

Maximum Endpoint PoE Power Available from PoE Power Supply (Watts)

NA (No PoE Support)

ISR4221-SEC/K9 Overview

Quick Specs

Table 1 shows the Quick Specs.

Product Code	Cisco ISR4221-SEC/K9
Bundle	Cisco ISR 4221 SEC Bundle with SEC lic
Aggregate Throughput	35 Mbps to 75 Mbps
Total onboard WAN or LAN 10/100/1000 ports	2
RJ-45-based ports	2
SFP-based ports	1
NIM (Network Interface Modules) slots	2
Onboard ISC slot	No
Default memory double-data-rate 3 (DDR3) error-correction-code (ECC) DRAM (Combined control/services/data planes)	4 GB
Flash Memory	8 GB
Power-supply options	External AC only
Rack height	1 RU
Dimensions (H x W x D)	1.72 x 12.7 x 10 in (43.7 x 322.6 x 254 mm)
Weight with AC PS (no modules)	7.1 lb (3.22 kg)

Product Details

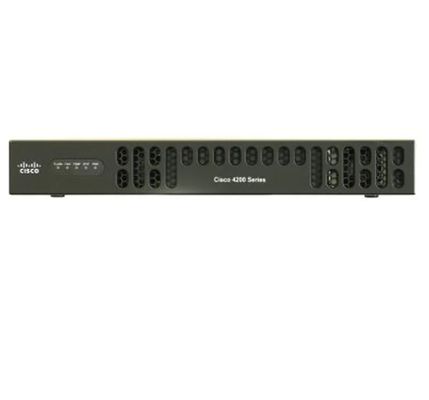

Figure 1 shows the LEDs on the front panel of the Cisco ISR4221-SEC/K9.

ISR4221-SEC/K9 ISR 4321 with 2 onboard GE, 2 NIM slots, 1 ISC slot, 4 GB Flash Memory default, 4 GB DRAM default 0

·There are 4 LEDs on the front panel.

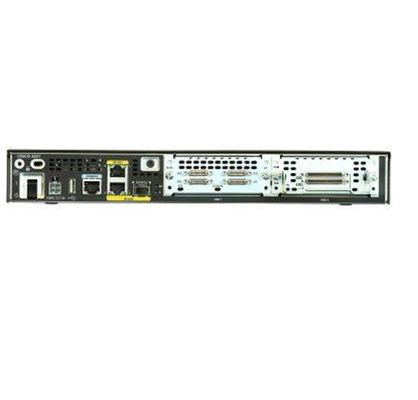

Figure 2 shows the back panel of Cisco ISR4221-SEC/K9.

ISR4221-SEC/K9 ISR 4321 with 2 onboard GE, 2 NIM slots, 1 ISC slot, 4 GB Flash Memory default, 4 GB DRAM default 1

Note:

①	GE 0/0/0 RJ-45 (copper cable) port	⑤	Console port
②	Power switch	⑥	GE 0/0/1 (copper cable) port
③	Power input connector	⑦	GE 0/0/0 SFP (fiber-optic) port
④	GE “MGMT” port (with USB port below)	⑧	NIM slots

Figure 3 shows the Security License function.

ISR4221-SEC/K9 ISR 4321 with 2 onboard GE, 2 NIM slots, 1 ISC slot, 4 GB Flash Memory default, 4 GB DRAM default 2

The Modules & Cards

Table 2 shows some recommended modules and cards.

Items	Models	Description
Console and Auxillary Cables	CAB-CONSOLE-RJ45	Cisco CAB-CONSOLE-RJ45 Console Cable 6ft with RJ45 and DB9F
Network Interface Modules	NIM-1MFT-T1/E1	Cisco Fourth-Generation Multiflex Trunk Voice and WAN network interface module
	NIM-ES2-4	Cisco 4000 Series Integrated Services Router 4-Port Gigabit Ethernet Switch Module layer 2
	NIM-ES2-8	Cisco 4000 Series Integrated Services Router 8-Port Gigabit Ethernet Switch Module NIM
SFPs for On-Board GE Ports	GLC-LH-SMD	Cisco GLC-LH-SMD 1000BASE-LX/LH SFP transceiver module, MMF/SMF, 1310nm, DOM
	GLC-ZX-SMD	Cisco GLC-ZX-SMD 1000BASE-ZX SFP transceiver module, SMF, 1550nm, DOM
	GLC-SX-M MD	Cisco GLC-SX-M MD 1000BASE-SX SFP transceiver module, MMF, 850nm, DOM

Compare to Similar Items

Table 3 shows the comparison.

Models	ISR4221/K9	ISR4221-SEC/K9
Bundle	N/A	Cisco ISR 4221 SEC Bundle with SEC lic
Aggregate Throughput	35 Mbps to 75 Mbps	35 Mbps to 75 Mbps
Total onboard WAN or LAN 10/100/1000 ports	2	2
RJ-45-based ports	2	2
SFP-based ports	1	1
NIM slots	2	2
Rack height	1	1

ISR4221-SEC/K9 ISR 4321 with 2 onboard GE, 2 NIM slots, 1 ISC slot, 4 GB Flash Memory default, 4 GB DRAM default 3
