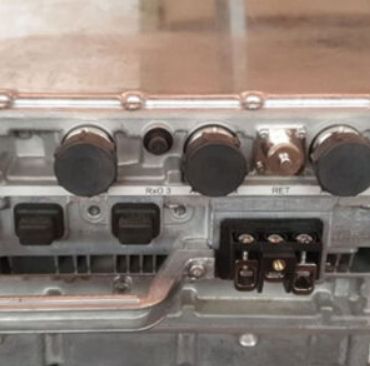

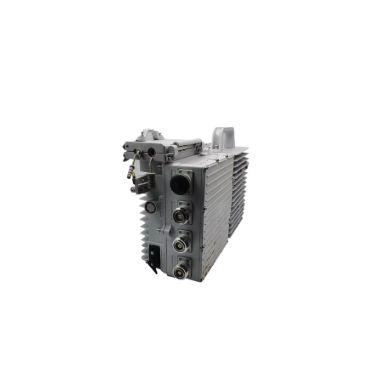

472930A (FRMF) A Nokia Flexi Radio Frequency Module For 800MHz FDD-LTE Networks

The #472930A (FRMF) is a Nokia Flexi Radio Frequency Module for 800MHz FDD-LTE networks. Key specifications include a total output power of 360W (6*60W), a 30 MHz bandwidth for both TX (791–821 MHz) and RX (832–862 MHz) frequencies, and support for 2x2 MIMO configurations. It is an outdoor-rated module designed for network infrastructure upgrades.

• Model Number: 472930A
• Module Type: Flexi Radio Frequency Module (FRMF)
• Brand: Nokia
• Application: LTE networks, optimized for FDD-LTE
• Frequency Band: 800 MHz
• Transmission (TX) Frequency Range: 791–821 MHz
• Reception (RX) Frequency Range: 832–862 MHz
• Bandwidth: 30 MHz
• Output Power: 360W (6*60W)
• MIMO: Supports 2x2 MIMO configurations
• Channels: 6 transmit (TX) and 6 receive (RX) channels
• Installation: Outdoor
• Weight: 24 kg (52.9 lb)
• Dimensions:
  • Height: 115 mm (4.5 in.)
  • Depth: 422 mm (16.6 in.) with front covers
  • Width: 447 mm (17.6 in.) without front covers
•
